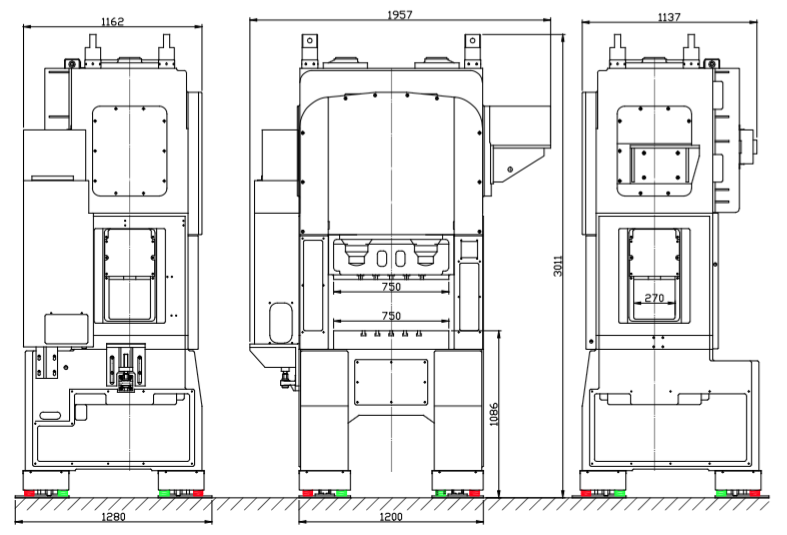

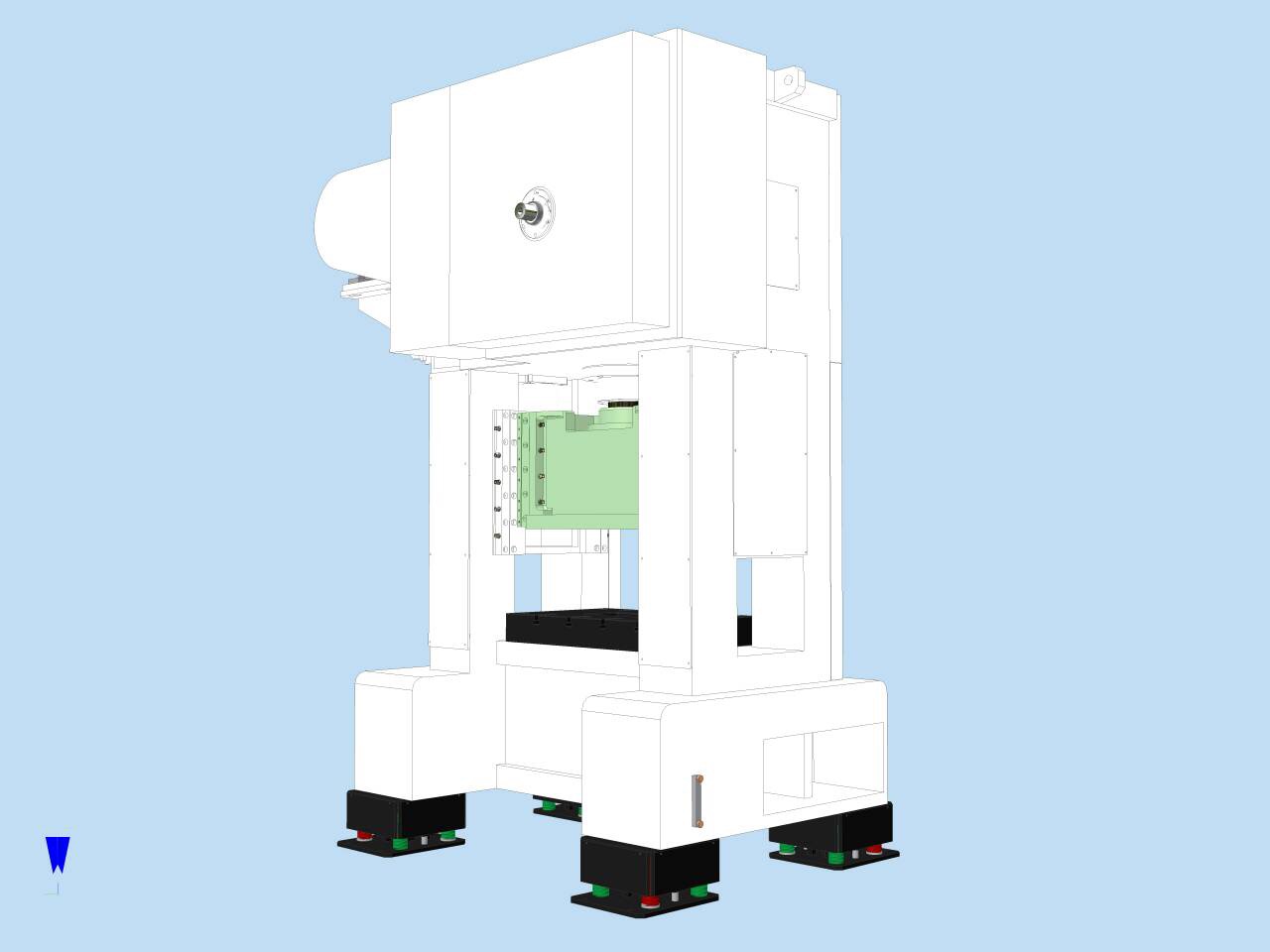

ANK-40T
- Specification
| Manufacturer | Knuckle Press 40T |
|---|---|
| Capacity (ton) | 40 |
| Stroke (mm) | 25 |
| Speed (spm) | 900 |
| Die Height (mm) | 240 |
| Slide Adjustment (mm) | 50 |
| Slide Area (mm) | 750 x 340 |
| Bolster Area (mm) | 750 x 500 |
| Main Motor (hp) | 15kwx4P |
| Brake Motor (hp) | 1kw |
| Lubrication Motor (hp) | 2kw |
